Deploying and Using ArgoCD

Install ArgoCD

Most of the instructions are from the Getting Started Guide

> kubectl create namespace argocd
namespace/argocd created
> kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml
...
customresourcedefinition.apiextensions.k8s.io/applications.argoproj.io created
customresourcedefinition.apiextensions.k8s.io/appprojects.argoproj.io created
serviceaccount/argocd-application-controller created

After a litte bit you should see all the pods deployed:

> k get pods -n argocd
NAME                                  READY   STATUS    RESTARTS   AGE
argocd-application-controller-0       1/1     Running   0          7m7s
argocd-dex-server-6dcf645b6b-p2xjd    1/1     Running   0          7m7s
argocd-redis-5b6967fdfc-97ttj         1/1     Running   0          7m7s
argocd-repo-server-7598bf5999-mwsbz   1/1     Running   0          7m7s
argocd-server-79f9bc9b44-7fvnv        1/1     Running   0          7m7s

I then followed instructions in Ingress Configuration to expose the ArgoCD UI:

> k apply -f ingress.yaml
ingress.networking.k8s.io/argocd-server-ingress created

If all is well you should see the following in the events (if you are using cert-manager):

> k get events --sort-by='.metadata.creationTimestamp' -A -w
ingress-nginx   2s          Normal   RELOAD              pod/nginx-ingress-controller-6c8d74ffc-b6nmd          NGINX reload triggered due to a change in configuration
argocd          2s          Normal   Requested           certificate/argocd-secret                             Created new CertificateRequest resource "argocd-secret-wwpsc"
argocd          2s          Normal   Reused              certificate/argocd-secret                             Reusing private key stored in existing Secret resource "argocd-secret"
argocd          2s          Normal   Issuing             certificate/argocd-secret                             Issuing certificate as Secret was previously issued by Issuer.cert-manager.io/
argocd          2s          Normal   OrderPending        certificaterequest/argocd-secret-wwpsc                Waiting on certificate issuance from order argocd/argocd-secret-wwpsc-3668447565: ""
argocd          2s          Normal   OrderCreated        certificaterequest/argocd-secret-wwpsc                Created Order resource argocd/argocd-secret-wwpsc-3668447565
argocd          2s          Normal   cert-manager.io     certificaterequest/argocd-secret-wwpsc                Certificate request has been approved by cert-manager.io
argocd          2s          Normal   CreateCertificate   ingress/argocd-server-ingress                         Successfully created Certificate "argocd-secret"
argocd          1s          Normal   Created             order/argocd-secret-wwpsc-3668447565                  Created Challenge resource "argocd-secret-wwpsc-3668447565-2818668963" for domain "argocd.kar.int"
argocd          0s          Normal   Started             challenge/argocd-secret-wwpsc-3668447565-2818668963   Challenge scheduled for processing
argocd          0s          Normal   Presented           challenge/argocd-secret-wwpsc-3668447565-2818668963   Presented challenge using DNS-01 challenge mechanism
argocd          0s          Normal   Sync                ingress/argocd-server-ingress                         Scheduled for sync
argocd          0s          Normal   DomainVerified      challenge/argocd-secret-wwpsc-3668447565-2818668963   Domain "argocd.kar.int" verified with "DNS-01" validation
argocd          0s          Normal   Complete            order/argocd-secret-wwpsc-3668447565                  Order completed successfully
argocd          0s          Normal   CertificateIssued   certificaterequest/argocd-secret-wwpsc                Certificate fetched from issuer successfully
argocd          0s          Normal   Issuing             certificate/argocd-secret                             The certificate has been successfully issued

We are going to need the argocd binary to configure ArgoCD, so let’s get that:

> curl -LO https://github.com/argoproj/argo-cd/releases/download/v2.1.7/argocd-linux-amd64
> mv argocd-linux-amd64 argocd
> chmod +x argocd
> sudo mv argocd /usr/local/bin/

Now let’s get the initially created password:

> kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

Now we can login with admin/above_password:

> argocd login argocd.kar.int
Username: admin
Password:
'admin:login' logged in successfully
Context 'argocd.kar.int' updated

We can and should change the default password:

> argocd account update-password
*** Enter current password:
*** Enter new password:
*** Confirm new password:
Password updated
Context 'argocd.kar.int' updated

ArgoCD Configurations

I ended up creating a couple of resources, so let’s break them down.

Adding Kubernetes Cluster

By default ArgoCD able to use the cluster it’s deployed on:

> argocd cluster list
SERVER                          NAME        VERSION  STATUS   MESSAGE
https://kubernetes.default.svc  in-cluster           Unknown  Cluster has no application and not being monitored.

If you need to add another cluster make sure kubectl is already using the appropriate kubeconfig and the context is set. Then you can add a kubernetes cluster of your choice:

> kubectl config get-contexts -o name
gke_kar-int_us-west4-a_my-gke-cluster
kerch-kube-cluster

And then add it:

> argocd cluster add kerch-kube-cluster
WARNING: This will create a service account `argocd-manager` on the cluster referenced by context `kerch-kube-cluster` with full cluster level admin privileges. Do you want to continue [y/N]? y
INFO[0006] ServiceAccount "argocd-manager" created in namespace "kube-system"
INFO[0006] ClusterRole "argocd-manager-role" created
INFO[0006] ClusterRoleBinding "argocd-manager-role-binding" created
Cluster 'https://kubeapi.kar.int' added

After some time it should show an appropriate status of the connection to the cluster:

> argocd cluster list
SERVER                          NAME                VERSION  STATUS      MESSAGE
https://kubeapi.kar.int         kerch-kube-cluster  1.23     Successful
https://kubernetes.default.svc  in-cluster          1.21     Successful

Add a Github Repo

First let’s Generate an ssh key to login to github with:

> ssh-keygen -t ed25519 -f argocd

Then add the key to your github settings. Next we can add a repo:

> argocd repo add git@github.com:elatov/k8s-prometheus.git --ssh-private-key-path /data/local/ssh-keys/argocd --name prometheus
Repository 'git@github.com:elatov/k8s-prometheus.git' added

You can make sure the connection is good by just listing the repos:

> argocd repo list
TYPE  NAME        REPO                                      INSECURE  OCI    LFS    CREDS  STATUS      MESSAGE
git   prometheus  git@github.com:elatov/k8s-prometheus.git  false     false  false  false  Successful

Now let’s add an application that uses a kustomize overlay:

> argocd app create prometheus --repo git@github.com:elatov/k8s-prometheus.git --path overlays/gcp --dest-server https://kubernetes.default.svc --dest-namespace default --sync-policy auto

If all is well you should see the app auto synced and healthy:

> argocd app list
NAME        CLUSTER                         NAMESPACE  PROJECT  STATUS  HEALTH   SYNCPOLICY  CONDITIONS  REPO                                      PATH          TARGET
prometheus  https://kubernetes.default.svc  default    default  Synced  Healthy  Auto        <none>      git@github.com:elatov/k8s-prometheus.git  overlays/gcp

You can also use kubectl to get similar information:

> k get applications -n argocd
NAME         SYNC STATUS   HEALTH STATUS
prometheus   Synced        Healthy

Using ArgoCD Metrics with Prometheus

This page has nice descriptions of how to use the metrics:

Enable the pod annotations

> kubectl -n argocd annotate service argocd-metrics prometheus.io/scrape="true"
> kubectl -n argocd annotate service argocd-metrics prometheus.io/port="8082"
> kubectl -n argocd annotate service argocd-server-metrics prometheus.io/scrape="true"
> kubectl -n argocd annotate service argocd-server-metrics prometheus.io/port="8083"

Using the Prometheus Operator as described in the link. (I wasn’t use the operator so this option wasn’t available to me)
Add the exposed service as a scape endpoint to the prometheus configuration. (this is the route I went since I didn’t want to keep updating my annotations after each argocd update.)

So I added the following configuration to my prometheus scape_config:

- job_name: 'argocd-app-metrics'
  scrape_interval: 15s
  static_configs:
  - targets: ['argocd-metrics.argocd.svc.cluster.local:8082']
- job_name: 'argocd-server-metrics'
  scrape_interval: 15s
  static_configs:
  - targets: ['argocd-server-metrics.argocd.svc.cluster.local:8083']
- job_name: 'argocd-repo-metrics'
  scrape_interval: 15s
  static_configs:
  - targets: ['argocd-repo-server.argocd.svc.cluster.local:8084']

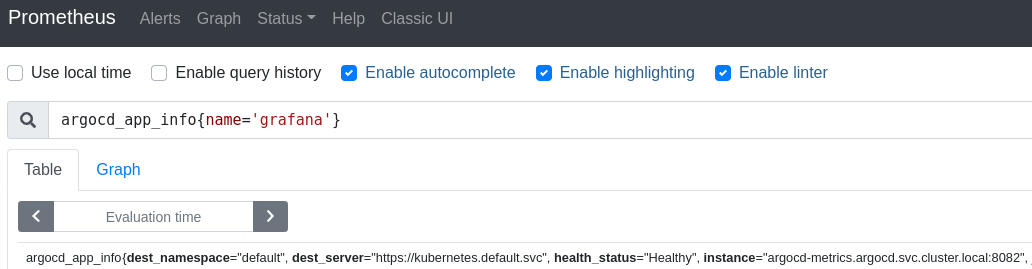

The Metrics page contains a list of all the available metrics, after I added the above I was able to query them in prometheus:

And also adding the official ArgoCD grafana dashboard, made it easy to visualize all the build components:

ArgoCD Notifications

Recently the ArgoCD Notifications project became part of the main ArgoCD project. It supports Slack and other services as well. I actually wanted to see how to use slack with it. Some nice examples of the slack are seen here. So let’s install the controller first:

> kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj-labs/argocd-notifications/v1.1.0/manifests/install.yaml

And let’s install the templates:

> kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj-labs/argocd-notifications/v1.1.0/catalog/install.yaml

After some time you should see the controller deployed:

> k get pods -l app.kubernetes.io/name=argocd-notifications-controller -n argocd
NAME                                               READY   STATUS    RESTARTS   AGE
argocd-notifications-controller-5c548f8dc9-rgx5n   1/1     Running   0          104s

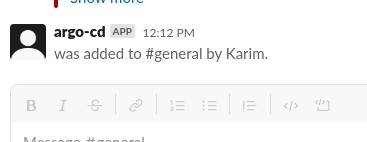

Create a Slack app as per the instructions in Slack Configuration and don’t forget to add the app into the desired channel:

Next let’s add the slack token as a secret:

> export TOKEN="xoxb-xxxxx"
> kubectl apply -n argocd -f - << EOF
apiVersion: v1
kind: Secret
metadata:
  name: argocd-notifications-secret
stringData:
  slack-token: ${TOKEN}
type: Opaque
EOF

Now let’s register the slack service:

> kubectl patch cm argocd-notifications-cm -n argocd --type merge -p '{"data": {"service.slack": "{ token: $slack-token }" }}'

Now let’s enable the notification on one of the apps:

> kubectl patch app prometheus -n argocd -p '{"metadata": {"annotations": {"notifications.argoproj.io/subscribe.on-sync-succeeded.slack":"general"}}}' --type merge
application.argoproj.io/prometheus patched

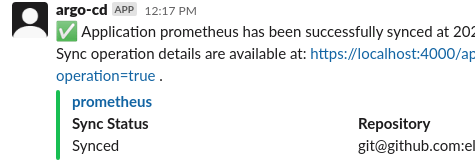

And you should see a message get to slack right away:

You can also enable them globally as described in Default Subscriptions. So I created the following to config to enable all the triggers:

> cat argocd-notifications-cm-merge.yaml
data:
  # Contains centrally managed global application subscriptions
  subscriptions: |
    # subscription for on-sync-status-unknown trigger notifications
    - recipients:
      - slack:general
      triggers:
      - on-sync-status-unknown
      - on-created
      - on-deleted
      - on-deployed
      - on-health-degraded
      - on-sync-failed
      - on-sync-running
      - on-sync-succeeded

And then for the merge:

> kubectl patch cm argocd-notifications-cm -n argocd --type merge -p "$(cat argocd-notifications-cm-merge.yaml)"
configmap/argocd-notifications-cm patched

And I received notifications about all the app deployed in ArgoCD.
